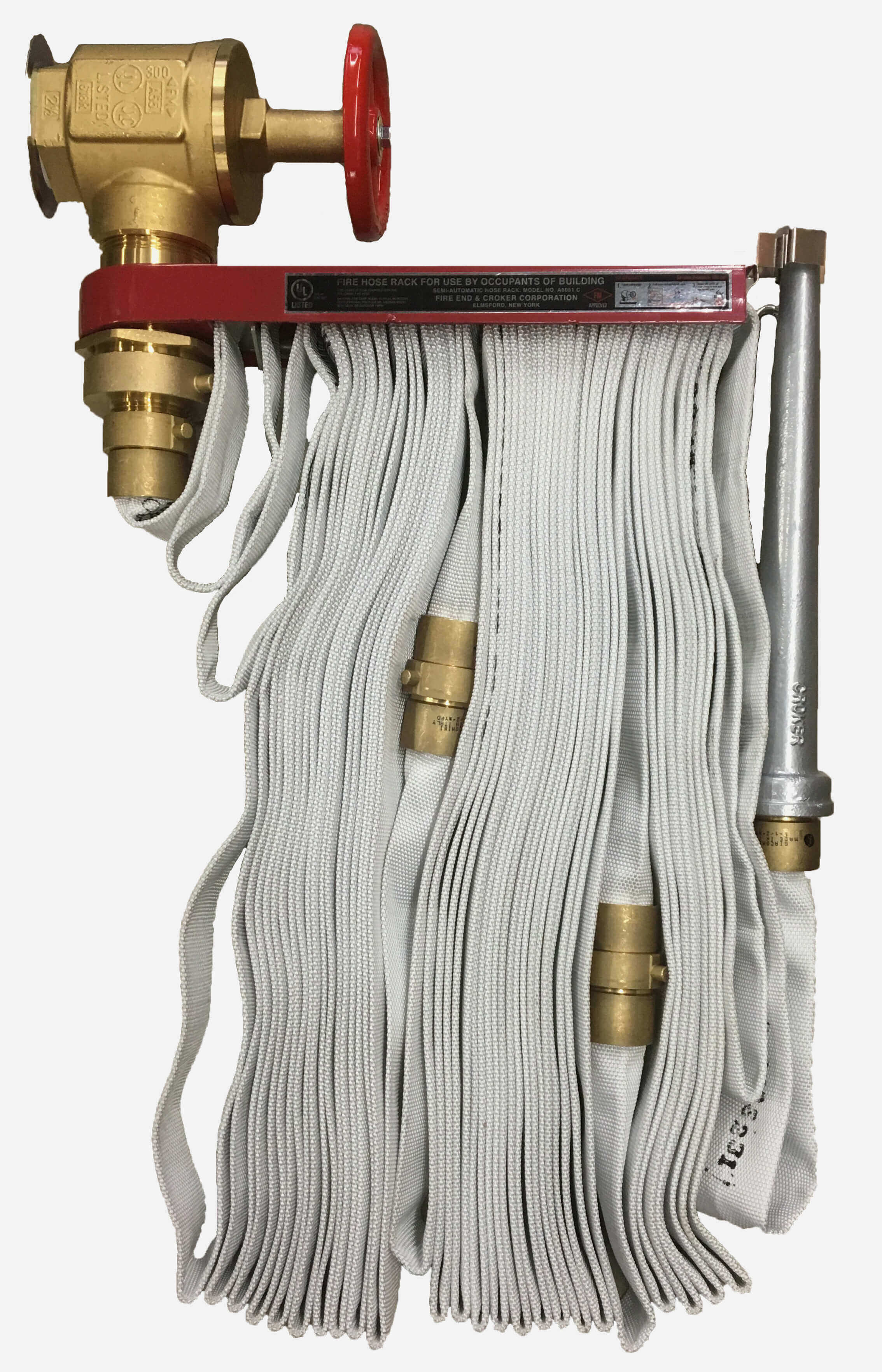

3200-NYC SERIES 2 1/2" X 1 1/2" HOSE RACK ASSEMBLY

3200-NYC Series Hose Rack Assemblies permit one-man operation and provide immediate means of fire control. These units are capable of delivering the nationally recognized standard of 100 GPM at 65 P.S.I. at the nozzle and are rated for Class II and Class III Service under NFPA/FEMA Class of Service.

STANDARD EQUIPMENT: No. 3401 - 1 1/2" Single Jacket Lined Hose No. 3440 - 1 1/2" Cast Brass Coupling FDNY Threads (one set per each length) No. 3486 - 1 1/2" Cast Iron Straight Stream Nozzle FDNY Threads No. 5045 - 2 1/2" Cast Brass Angle Valve U/L No. 5735 - 2 1/2" Cadmium Plated Escutcheon No. 3356 - Red Enamel Pin Rack U/L No. 3366 - 2 1/2" Cast Brass Nipple NYC Threads No. 7245 - 2 1/2" X 1 1/2" Cast Brass Reducer FDNY Threads
