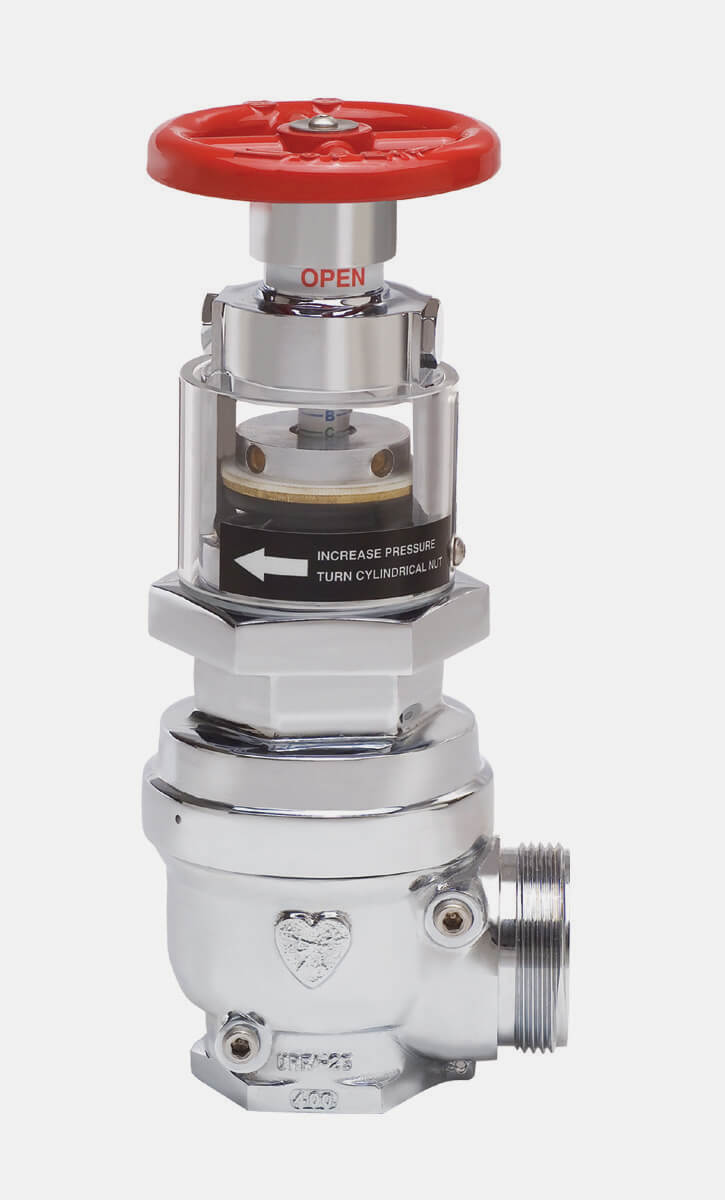

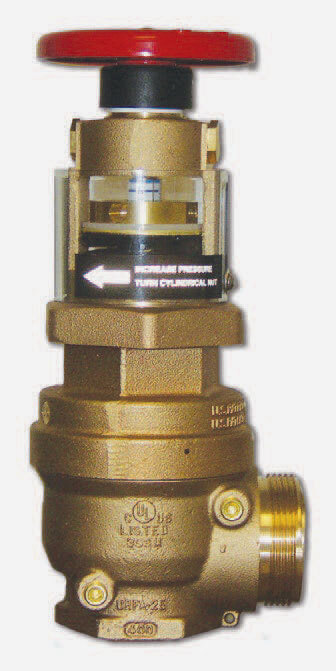

5400 SERIES ADJUSTABLE PRESSURE REDUCING VALVE

Application:

Automatically regulates pressure under flowing (residual) and non-flowing (static) conditions. Listed for use as a hose connection in Class I and Class III standpipe systems where inlet pressures require regulation.

Standard Features:

Angle type cast brass valve with red aluminum handle. Made/assembled in the USA or China.

Female NPT Inlet x Male NH/NST Outlet.

- Low torque manual open/close handle.

- Low torque field adjustable pressure setting easily determined with color coded indication label.

- Tamper resistant protective shroud.

- 1/4” Ports (4) drilled, tapped, and plugged. Install pressure gauges to monitor upstream and downstream pressures.

- Visual Indicator for OPEN/CLOSED status.

- Setting rod included with each valve.

- Size & weight permits installation in 1700 Series Cabinet (18” x 18” x 8”).

Optional Features:

Optional Finishes: Polished Brass (PB), Rough Chrome (RC), or Polished Chrome (PC).

Grooved inlet with adapter.

Special hose threads on male outlet (Customer to specify).

Approvals:

UL®/ULC® Listed to 400 PSI for flow rates up to 500 GPM.

NYC MEA # 352-91-M.

City of Denver Approved.
