COMMERCIAL RISER PACK WITH PRESSURE RELIEF

Pre-Assembled Commercial TESTanDRAIN® RiserPACK with Pressure Relief

Application: A pre-packaged economical riser assembly designed for NFPA 13 wet fire sprinkler systems requiring pressure relief.

Features:

• Bronze or Schedule 40 Steel Riser
• 1” NPT or Saddle Mount Water Flow Alarm Switch w/ Retard
• Model 7500 3½” Pressure Gauge with Model 7600¼” 3-Way Globe Valve
• Model 2511A TESTanDRAIN® Valve featuring Model 7000 UL/FM Pressure Relief Valve and Test Orifice
• Model 7000 Pressure Relief Valve (UL/FM) features a flushing handle and a 175 PSI factory rating (other pressure ratings available)
• Horizontal or Vertical Installation
• Made in the USA

Pressure rating: 300 PSI

Available sizes: 1¼", 1½", 2", 2½”, 3", 4", 6"

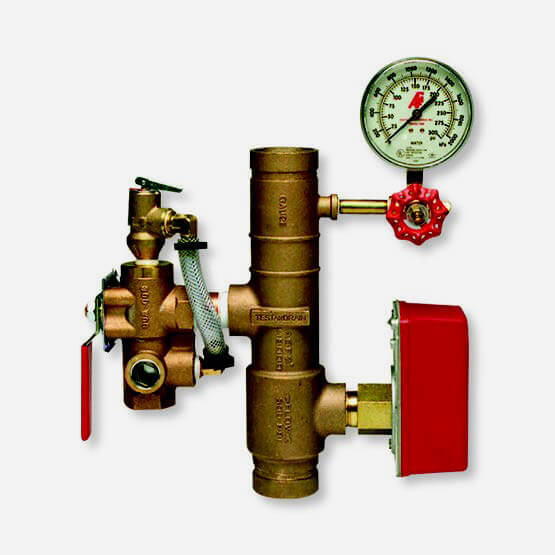

• 1¼", 1½", and 2" Models are cast bronze with male threaded, grooved, or threaded x grooved ends

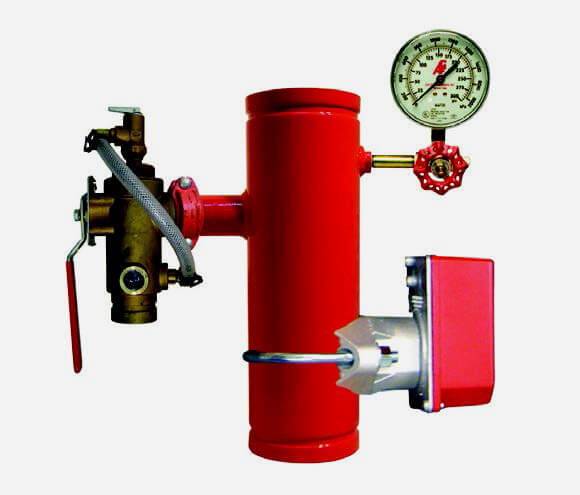

• 2½", 3", 4", and 6" models are Schedule 40 steel with 3mil red powder coated finish and grooved ends
• 1¼", 1½", and 2" models feature a 1" FNPT Model 2511A with available orifice sizes of 3⁄8" to 5⁄8" (ELO)
• 2½" and 3" models feature a 1¼" FNPT Model 2511A with available orifice sizes of 3⁄8" to ¾" (ESFR)
• 4" and 6" models feature a 2" grooved Model 2511A with available orifice sizes of 3⁄8" to K-25

Approvals:

• UL and ULC Listed
