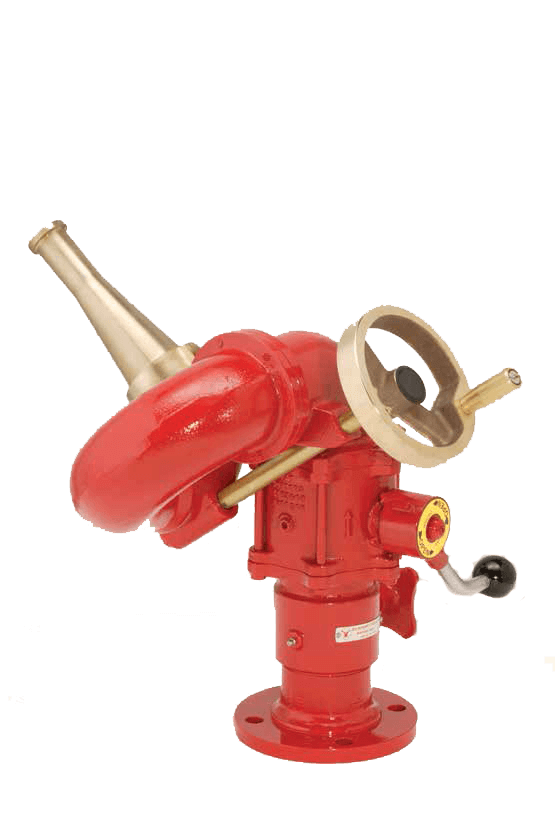

9004

Standard Features:

• Constructed of corrosion-resistant brass

• Full 3.0” single flow efficient waterway allows for flows up to 1250 GPM

• Hand-wheel driven worm gear (fully enclosed) for vertical travel of 90° above to 60° below horizontal

• Full 360° horizontal travel with a positive twist-lock mechanism

• Grease fittings for easy lubrication of gear and ball races

• 3” 150# ANSI flange base (3.0” NPT and 4.0” 150# ANSI flange bases optional)

• Red urethane enamel finish

• All construction features designed to minimize maintenance needs

• Fully enclosed gearcase with stainless steel worm

• Bronze balls in all swivel joints

• Grease zerks for easy lubrication

• Flexible installation options include numerous base options and a hydrant mounting choice

• Compact size — 16” high or 21” high

Optional Features:

Built-in shut-off capabilities from a full flow 3” ball valve (9004BV)

Optional 200 psi liquid-filled gauge (9004LFG)

Approvals:

FM approved and CE certified
