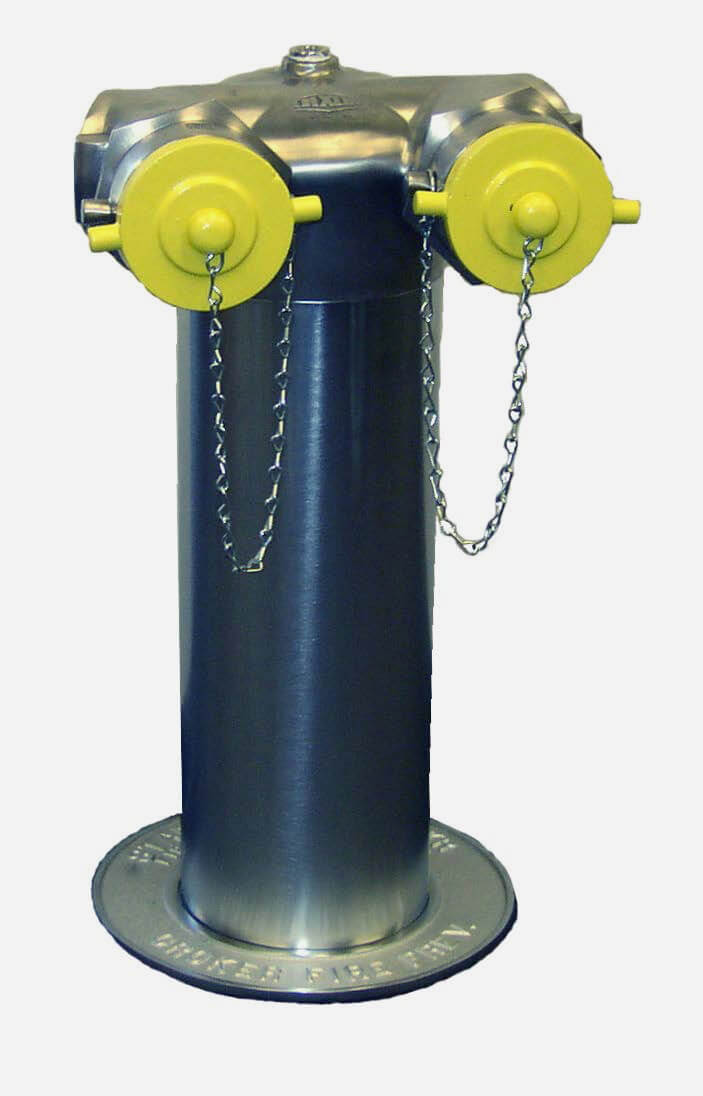

6X3X3 600 PSI RATED FREESTANDING FDC

6x3x3 600 PSI rated stainless steel freestanding FDC with FDNY threads. Includes sleeve, plate, & plugs.

Application: Serves as an exterior freestanding auxiliary connection used to supplement the fire protection water supply in standpipe and/or sprinkler systems. Capable of flowing a minimum of 500 GPM at inlet pressures up to 600 PSI.

Standard Features: • Body: 600 PSI Rated 316 stainless steel satin (brushed) finish angled body 6” female NPT outlet x (2) 3” female FDNY threaded swivel inlets. 316 stainless steel side mounted internal clappers. • Sleeve: 6” x 18” brass sleeve with satin (brushed) chrome finish (6.75” ID, 6.85” OD). • Plate: 6” brass round identification plate with satin (brushed) chrome finish. Select lettering to identify system type. Standard lettering options: “Auto Sprinkler”, “Standpipe”, “Standpipe Sprinkler”. • Plugs: (2) 3” cast iron FDNY threaded plugs (painted red, yellow, or green per NYC code) with chains.

Optional Features: • Sleeve length extended up to 48”.

Approvals:

• FM Approved to 600 PSI.

• New York City Fire Department Approved COA# 5826.
